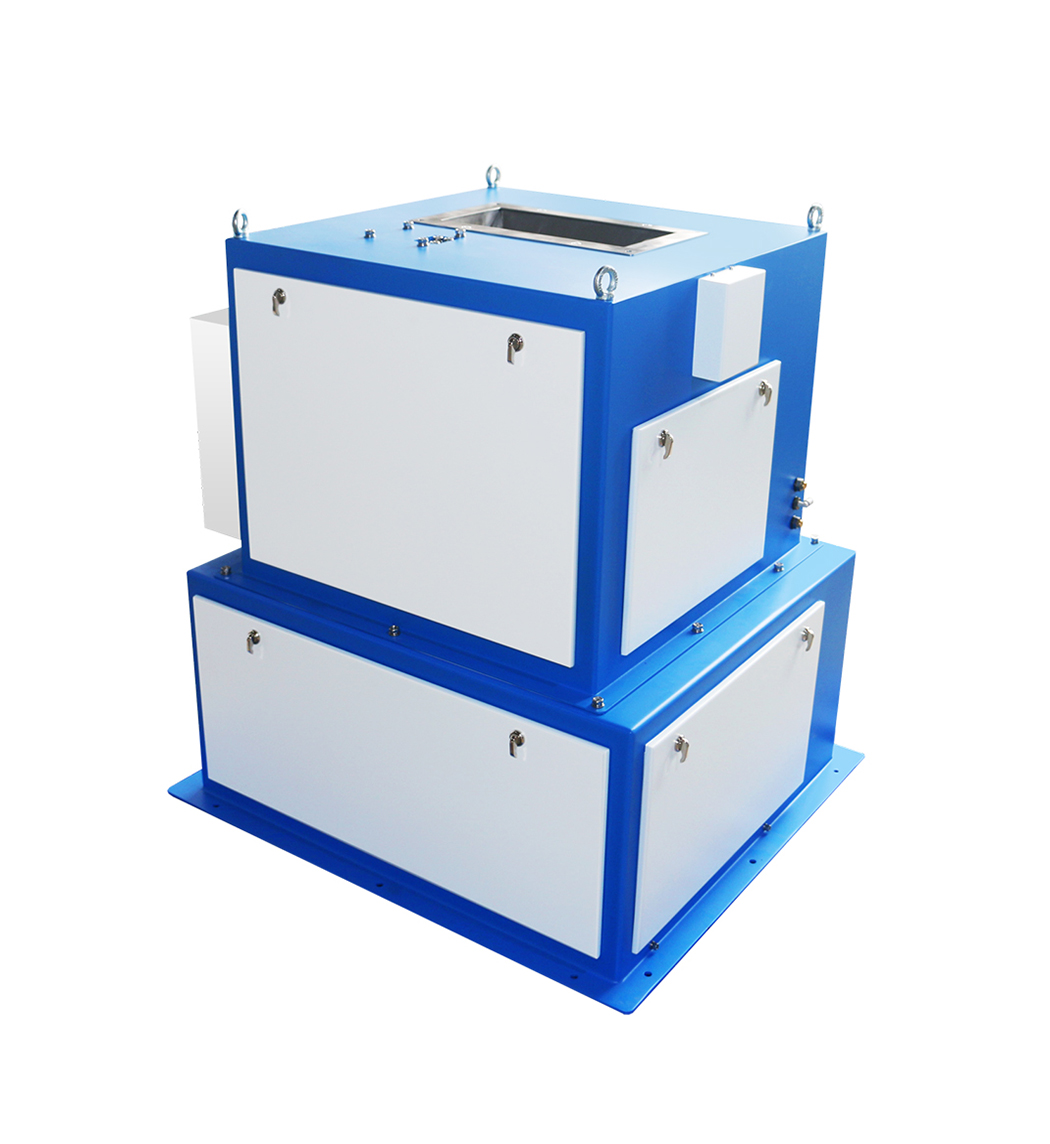

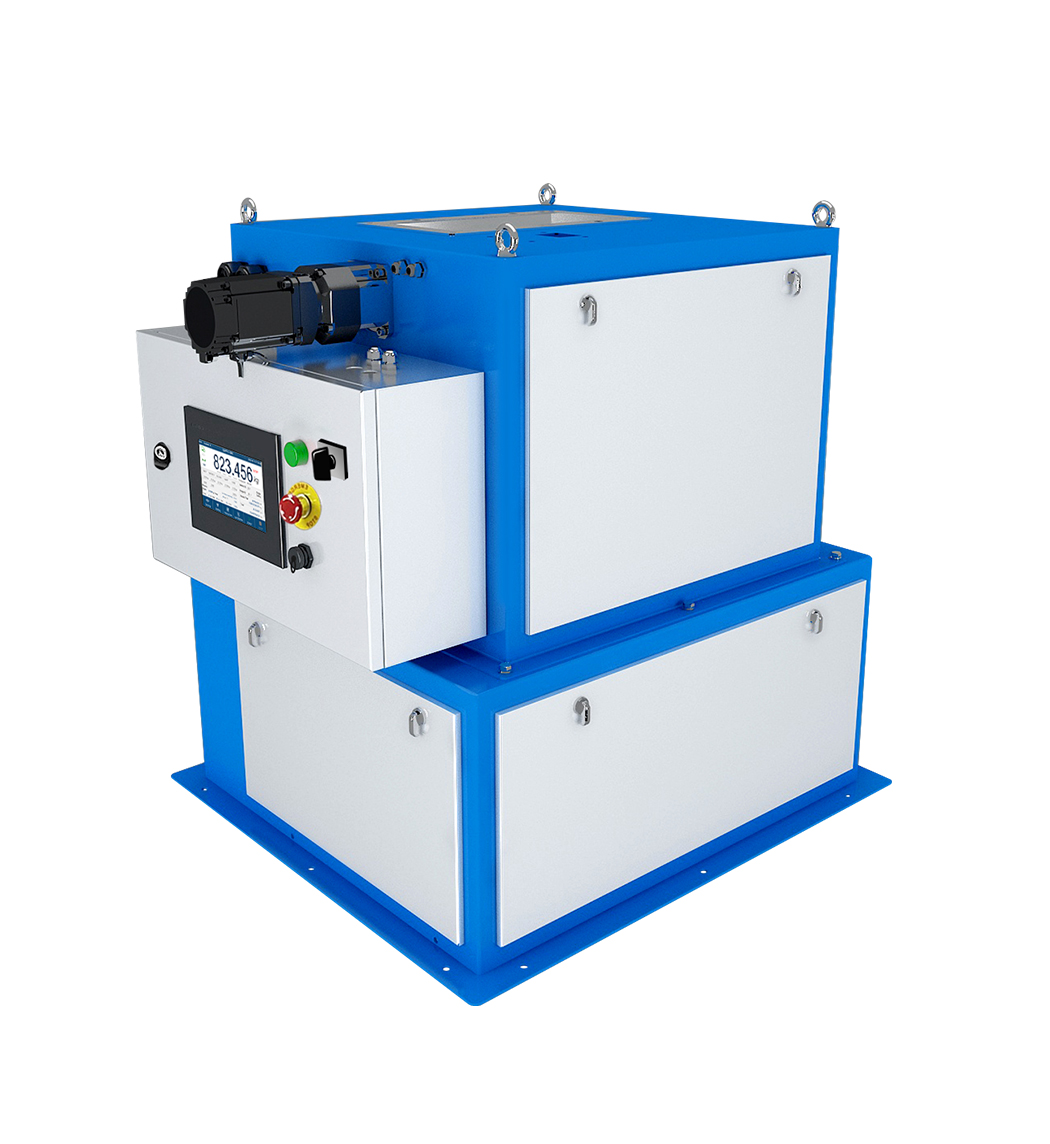

Continuous Weighing Scale

B103B-12T Continuous Weighing Scale is designed for continuous discharging and intermittent feeding during batching and weighing operations. It discharges mixing material uniformly and maintains automatic flow at the desired level. The flow rate of this weighing scale ranges between 0.5t and 12t per hour and the accumulated accuracy rate is below 0.1%. Continuous Weighing Scale B103B-12T is manufactured using industry-grade material suitable for weighing chemicals, food products, agro products, etc. It fits well in almost all industrial flow-batching applications.

Category:
Inquire Now
  • Detects discharging level continuously for flowing material uniformity
  • Designed to handle granular material
  • Has self-adaptation feature for maintaining flow rate during operations

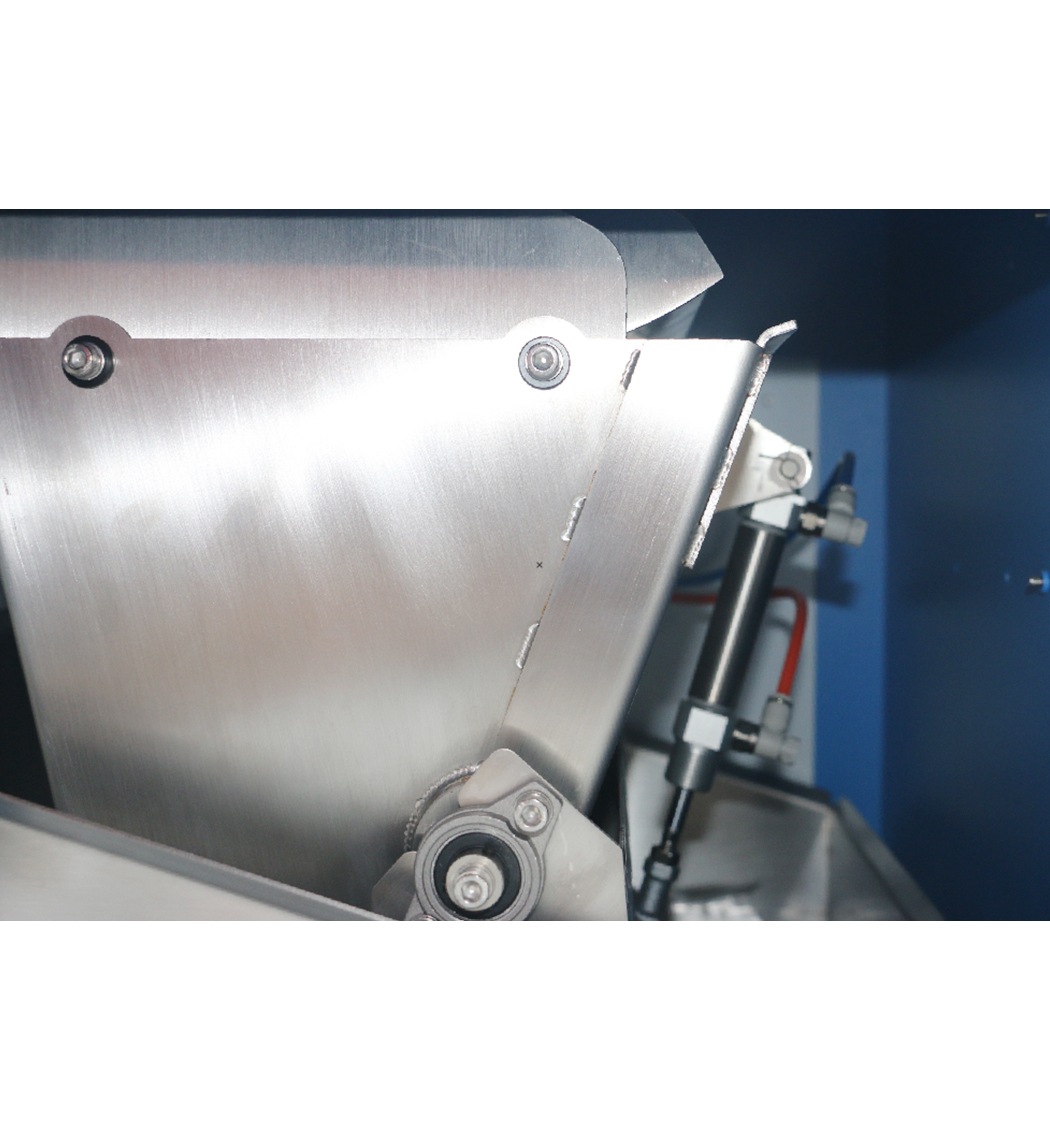

  • A cleaning set is included for cleaning the weighing hopper after batch processing
Model B103B-12T
Productivity 0.5~12t/h
Accuracy ≤0.5%
Accumulated accuracy ≤0.1%
Power 0.25KW
Air supply 0.4~0.6MPa
Power supply AC 220V 50HZ
Operating temperature 0~40°C

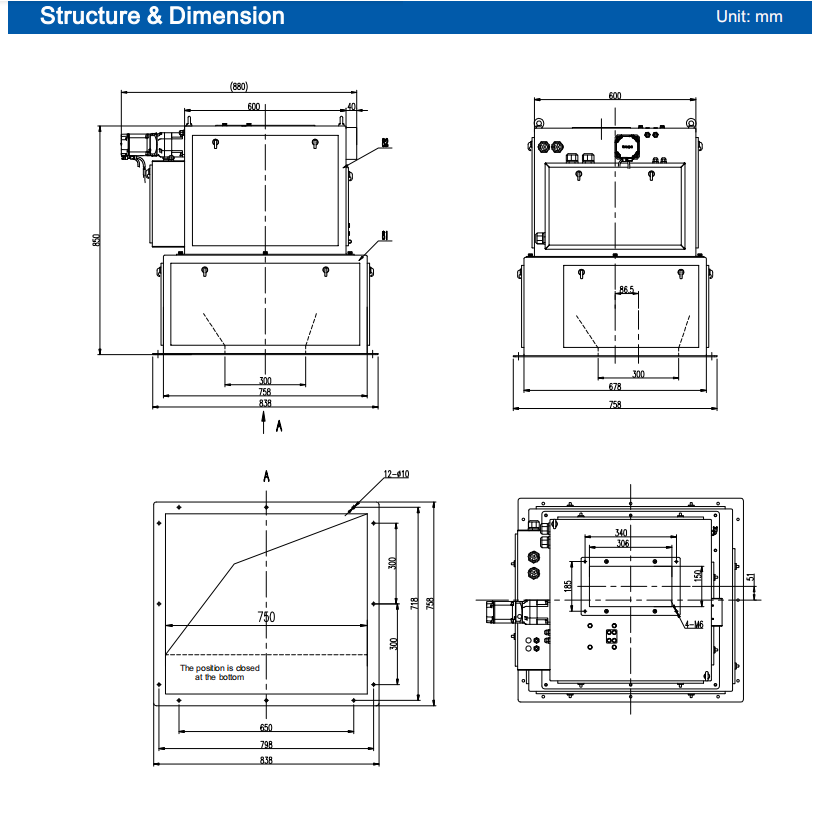

Dimension 600x850x838mm
Material Food contacting material S304 stainless steel

FAQ

FAQ

Clearing Up Your Queries and Providing Informed Solutions
What is the Prompt Automatic Bag Filling System?

The Prompt Automatic Bag Filling System is a high-speed bag filling machine designed for industrial applications that deal with granular products like rice, pulses, animal feed, maize, soybeans, seeds, plastic granules, etc for filling and Stiching/Sealing Bag.

What are the different models available in the Prompt Automatic Bag Filling System?

The different models available in the Prompt Automatic Bag Filling System are PAB-05K, PAB-25K, PAB-50K, and PAB-100K.

What is the accuracy range of the Prompt Automatic Bag Filling System?

The accuracy range of the Prompt Automatic Bag Filling System is ±5gm up to 5kg, ±10gm up to 25kg, ±20 g up to 50 kg and ±50 g up to 100 kg.

What is the speed range of the Prompt Automatic Bag Filling System?

The speed range of the Prompt Automatic Bag Filling System is up to 14 bags per minute for 25kg bagging.

What is the filling mode of the Prompt Automatic Bag Filling System?

The filling mode of the Prompt Automatic Bag Filling System is with a Servo motor with three stages of feeding, course, moderate, and fine.

What is the communication interface available with the Prompt Automatic Bag Filling System?

The communication interfaces available with the Prompt Automatic Bag Filling System are USB, RS232/485, and Modbus TCP/IP.

What is the data storage capacity of the Prompt Automatic Bag Filling System?

The data storage capacity of the Prompt Automatic Bag Filling System is 700,000 bags data.

What is the value for the minimum division in the Prompt Automatic Bag Filling System?

The value for the minimum division in the Prompt Automatic Bag Filling System is 1, 2, 5, 10, 20, and 50.

What is the material used in the construction of the Prompt Automatic Bag Filling System?

The food contacting material used in the construction of the Prompt Automatic Bag Filling System is SS304 stainless steel, and the others are MS.

What is the operating temperature range of the Prompt Automatic Bag Filling System?

The operating temperature range of the Prompt Automatic Bag Filling System is 0°C~40°C.

What is the operating humidity range of the Prompt Automatic Bag Filling System?

The operating humidity range of the Prompt Automatic Bag Filling System is 90% R.H, and condensation is not allowed.

What is the power requirement of the Prompt Automatic Bag Filling System?

The power requirement of the Prompt Automatic Bag Filling System is 3 phase, AC 110 ~ 260V.50/60Hz. Approximate 200VA.

What are the optional accessories available with the Prompt Automatic Bag Filling System?

The optional accessories available with the Prompt Automatic Bag Filling System are double thread, auto thread cutter Stitching machine, and heat sealing Machine.

What is the structure of the Prompt Automatic Bag Filling System?

The structure of the Prompt Automatic Bag Filling System includes a weighing hopper, Storage hopper, electric cabinet, and discharge hopper, Clamper, Conveyor, Stitching machine / Heat-sealing machine.

What is the controller used in the Prompt Automatic Bag Filling System?

The controller used in the Prompt Automatic Bag Filling System is a touch screen bagging controller.

What is the Electronics hardware used in the Prompt Automatic Bag Filling System?

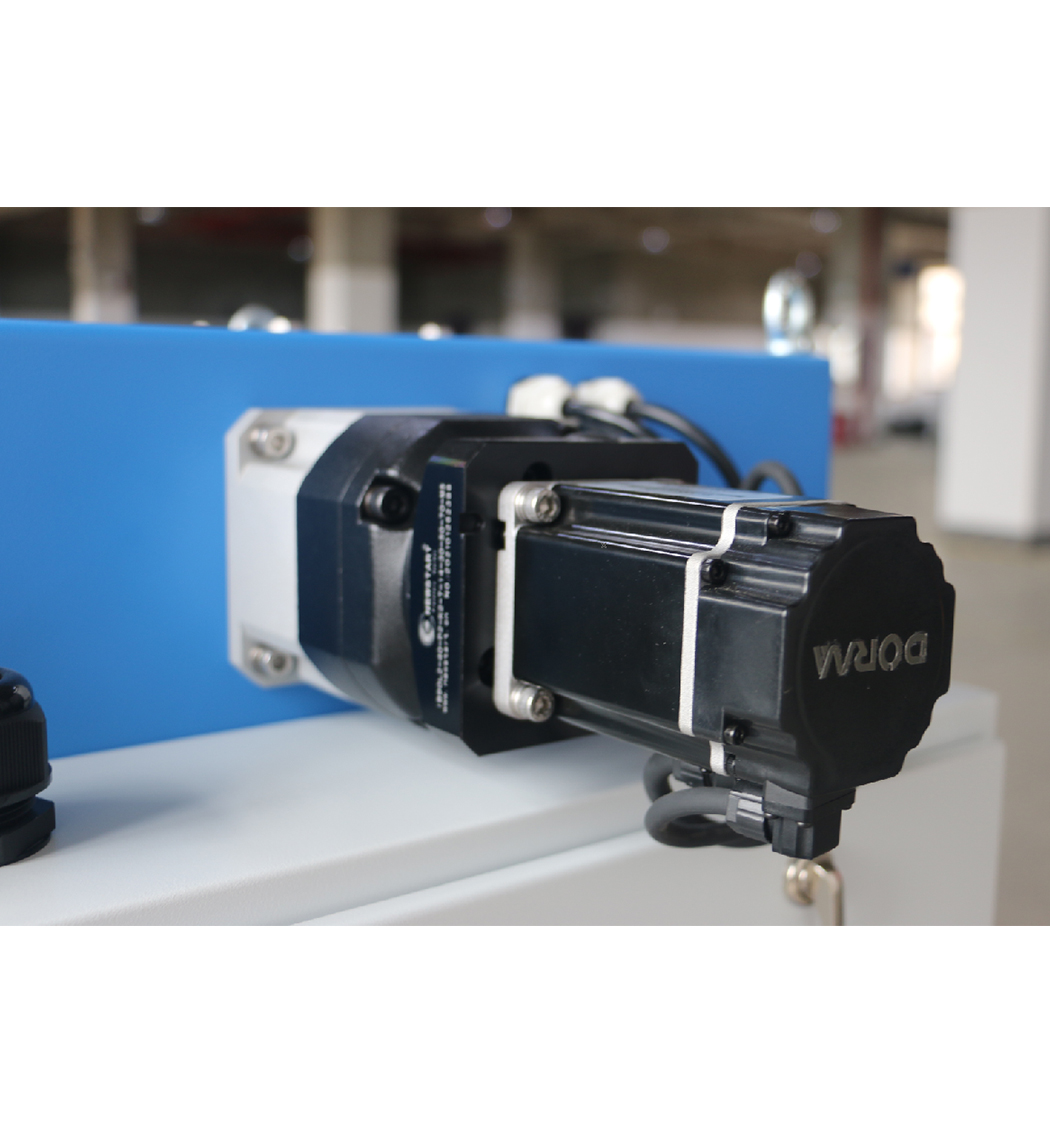

The hardware used in the Prompt Automatic Bag Filling System includes a 10-inch touch screen, actuator, F301 mainboard, and 4G signal transmitter (optional), Stepper Motor, Pneumatics etc.

What are the benefits of using the Prompt Automatic Bag Filling System?

The benefits of using the Prompt Automatic Bag Filling System include high-speed and accuracy with auto feedback control, easy and fast installation, customization for different materials, user-friendly touch screen, and efficient.

What are the advantages of using Prompt Automatic Bag Filling System?

Increased efficiency, consistency, and reduced labor costs.

For which products can this be used?

Granular products

How does Prompt Automatic Bag Filling System handle bag sealing?

Stitching and heat sealing
