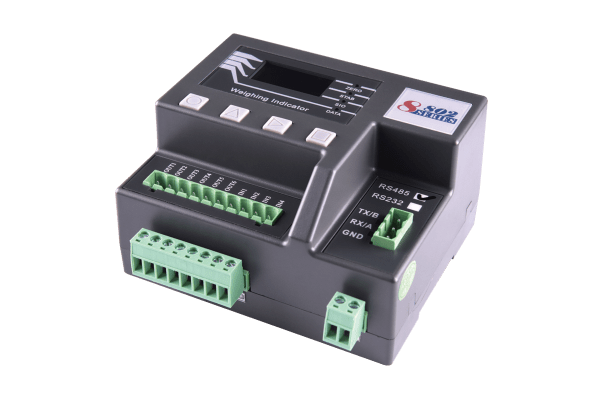

GM8802S-T
This multi-function weighing control indicator that offers various functions. It is especially suited for industries that have small-volume products and need plenty of communicating commands. Easy to use, this digital weighing transmitter offers stable performance and desired results.
Related products
- Din Rail mounting design
- Optional A/D sampling 120/240/480times/sec
- I/O points (4 input and 6 outputs)
- Simple design to facilitate connection to a PLC
- Easily available minimum divisions: 1, 2, 5, 10, 20, or 50
- Able to run up to 8 strain gauge load cells (4 or 6-wire)
- Low-cost digital indicator for various applications
- RS-232/RS485 (Optional)
- Ethernet port (Modbus TCP)
- Voltage output(0~5V / 0~10V) and current output(4~20mA / 0~20mA / 0~24mA)
- PROFIBUS
- Advance digital filtering
- Anti-vibration
- High Accuracy
| ANALOG UNIT | ||
| AD conversion method | 24-bit Delta-Sigma modulation | |
| Zero adjustment range | 0.02 to 8mV (Load cell 2mV/V) | |
| Nonlinearity | 0.01% | |
| Maximum input voltage | 0.02 to 10mV (Load cell 2mV/V) | |
| Minimum sensitivity | 0.1 μVId | |
| Input impedance | 10MΩ | |
| Sampling rate | 120/240/480 times/sec | |
| Display resolution | 1 / 100,000 | |
| Load cell excitation | DC5V, 200mA(Max.), Up to 8 load cells(350Ω) can be connected | |
| DIGITAL UNIT | ||
| Display elements | 1.3inch OLED screen | |
| Status Indicators | ZERO, STAB, SIO, DATA | |
| BASIC SPECIFICATIONS | ||
| Power source voltage | DC24V ± 5% | |
| Power consumption | Approx 10W | |
| Temperature and humidity | -10℃to 40℃ / 90% R.H or ess(Condensation must be avoided) | |
| Dimensions | 110 X 89 X 60 mm (LxWxH) | |
| Weight | Approx.250g |
