MO2

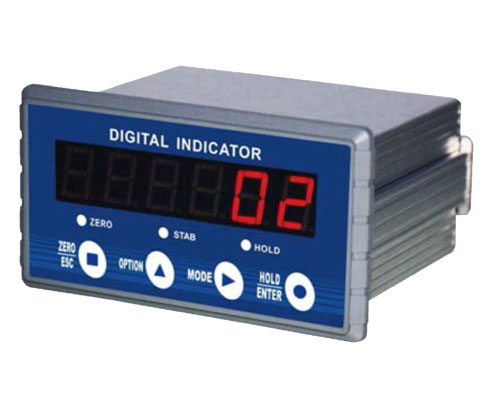

MO2 is a digital weighing transmitter that features a contemporary and compact design, making it reliable in tough industrial environments. It comes with multiple communication ports like RS232/485, and analogue output or Modbus TCP/IP (optional). This weighing transmitter will take care of all your basic weighing needs with absolute precision. It has a compact body that is ideal for mounting into a control panel.
Related products
- Standard RS232/485 interface
- Simple design to facilitate connection to a PLC.
- Operating functions by 4 set buttons.
- I/O points (1 input, 2 outputs) as standard.
- Optional analog output (0-5V initial).
- Powers up to 8 units of load cells.
- Selectable A/D Converter 15/30/60/120/480/960times/sec.
- Easily selectable minimum divisions: 1, 2, 5, 10, 20, or 50.
- Digital indicator with competitive price for various applications
- Compact, lightweight body makes it ideal for mounting into a control panel.
- CE Approved
- Compact Design
- IP65 Protected
- EMC testing pass
| ANALOG UNIT | ||
| A/D conversion method | 24-bit Delta-Sigma modulation | |
| Zero adjustment range | 0 to 12mV (Load cell 3mV/V) | |
| Nonlinearity | 0.01% FS | |
| Maximum input voltage | 0 to 15mV (Load cell 3mV/V) | |
| Minimum sensitivity | 0.1 μ V/d | |
| Input impedance | 10MΩ | |
| Sampling rate | 15/30/60/120/480/960 SPS | |
| Display resolution | 1/100,000 | |
| Load cell excitation | DC5V, 200mA(Max.), Up to 8 load cells(350Ω) can be connected | |
| DIGITAL UNIT | ||
| Display elements | 7-segment 6-digit red LED | |
| Data display range | 0 to 999,999d | |
| Status indicators | ZERO, STAB, HOLD | |
| BASIC SPECIFICATIONS | ||
| Power source voltage | DC24V + 5% | |
| Power consumption | Approx. 10W | |
| Temperature and humidity Dimensions | -10°C to 40°C / 90% R.H or less(Condensation must be avoided) | |
| Dimensions | 110 x 89 x 60 mm (LxWxH) | |
| Weight | Approx.350g | |
| Panel cut dimensions | 93 x 46mm | |
| Dust/water protection | The IP 65 display when mounted into a panel | |
| Enclosure | ABS front panel, aluminium case. | |
| COMMUNICATION | ||
| Serial interface | Standard RS-232/RS485 interface | |
| Analogue output | Voltage/Current (±10V, 4-20mA) | |
| Ethernet | Modbus TCP |
MO2 Digital Weighing Indicator
