Precision in Every Measure

Elevate Your Experience with Our Weighing and Packaging Solutions

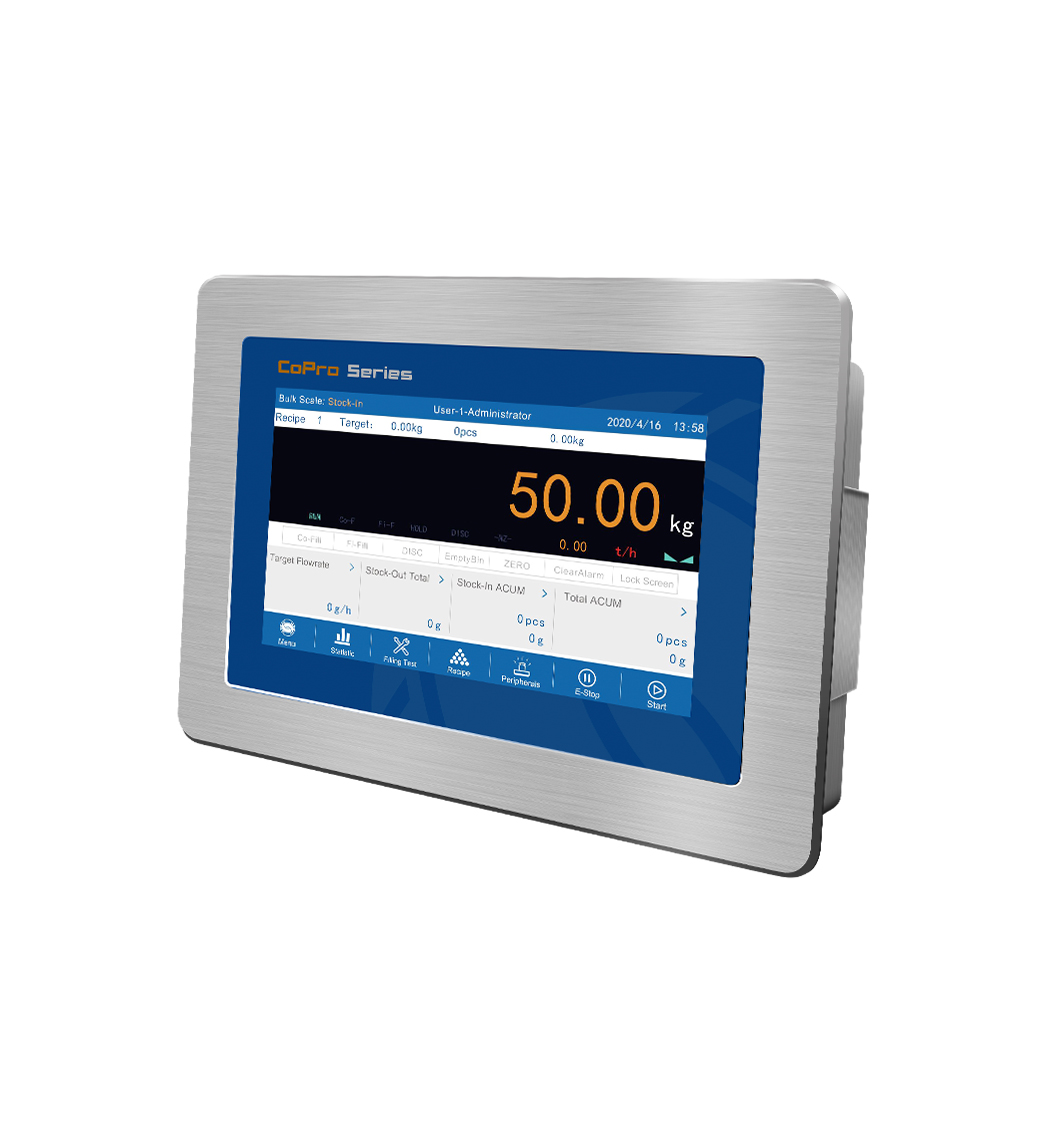

GMC-P7 weighing controller is designed for dynamic weighing/packing/batching applications, widely used in grain and seeds, feeds, rubber and plastic, and the chemical industry. It has multi-softwares for different applications.

1. Single hopper packing

2. Double hopper packing

3. Reduce weight method packing

4. Bulk scale

5. Batching scale

Inquire Now

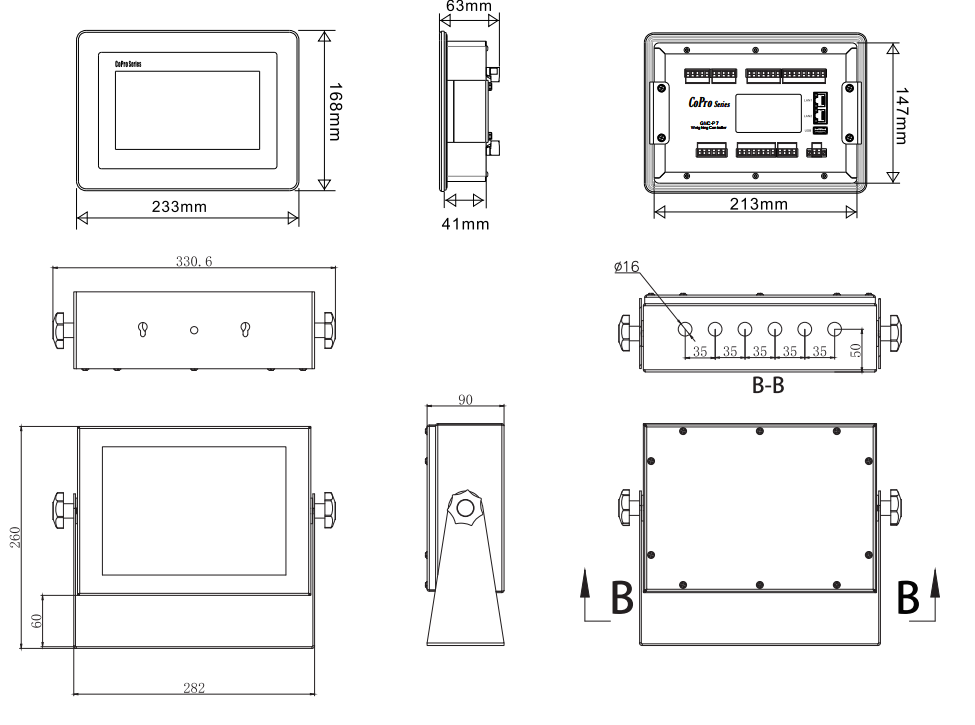

  • Panel mount & Harsh desk/wall mount
  • Metal case with SS306 and aluminum provides better EMC protection and screen protection
  • 6mm front panel with rubber seal strip makes it fit the control box well, which improves the sealing and dust-proof performance
  • MCU CPU with quad-core (Linux) for fast images and data processing ability
  • Support mouse and keyboard control by USB connection
  • Equipped with GMA-X1 automatic traction module, which reduces workforce cost and improves work efficiency
  • 500ma over-current protection for IO port
  • 7-inch touch screen, interactive design, and easy operation
  • Multi-Mode: With Hopper, No Hopper, Big Bag Scale, Valve Scale, PLC
  • Automatic drop correction function, feeding adaptive speed function
  • Starting patting mode when filling material to shape bags by setting relevant parameters
  • Record the weight of every pack, million data storage, and export.
  • RS232+RS485 for connecting PC, PLC, Printer, Label Printer, Remote Display, Code Printer, or other external devices for reading and setup remotely
  • 12 Input/16 Output for starting, stopping, unloading, clamping/loosening bags
  • Modbus TCP/IP for connecting PC, PLC, and Printer for reading remotely
  • USB for importing and exporting recipes, I/O function communication parameters, and other working parameters
  • Upgrading system software, customizing the boot screen
  • High Accuracy
  • EMC Test Passed
  • IP65 Protected
  • CE Approved
Model GMCP7
Power supply DC 24V plus or minus 5%
Operating temperature -10~40°C
Maximum humidity 90% R.H without dew
Power consumption about 15W
A/D Performance 24-bit delta-Sigma
A/D conversion speed 120/240/480 times /sec
Nonlinearity 0.01%F.S
Gain drift 10PPM/°C
Input sensitivity 0.02uV/d
Zero adjustment range 0.02-8mV (Load cell 2mV/V)
Input range 0.02~10mV (Load cell 2mV/V)
Accuracy 1/100,000
Sensor excitation power supply DC5V, 125ma (max)
Zero steady range Maximum 0.002 – 15mV(Load Cell 3mV/V)
Input impedance 10MΩ
• Single hopper packing
• Double hopper packing
• Reduce weight method packing
• Bulk scale
• Batching scale
Equipped with GMA-X1 automatic traction module, reduce workforce cost




Clearing Up Your Queries and Providing Informed Solutions
What is a weighing controller?

A weighing controller is a device that is used to control and manage the weighing process. It is responsible for receiving and processing signals from the load cells or sensors and providing output signals to other devices.

What is a weighing indicator?

A weighing indicator is a device that displays the weight of the load on the weighing scale. It is typically used in conjunction with load cells or sensors to accurately measure the weight of objects.

What is a weighing transmitter?

A weighing transmitter is a device that converts the signal from load cells or sensors into a standardized signal that can be used by other devices, such as a computer or a PLC.

What are load cells?

Load cells are transducers that are used to measure weight. They convert the force exerted by a load into an electrical signal that can be measured and analyzed.

What is calibration?

Calibration is the process of adjusting a weighing system to ensure that it provides accurate and reliable measurements. It involves comparing the system's readings to a known standard and making adjustments as necessary.

Why is calibration important?

Calibration is important to ensure that the weighing system provides accurate and reliable measurements. A poorly calibrated system can lead to incorrect measurements, which can have serious consequences in industries such as healthcare, pharmaceuticals, and food production.

What is zero drift?

Zero drift is a phenomenon in which the zero point of a weighing system shifts over time. This can be caused by changes in temperature, mechanical wear, or other factors.

What is the difference between analogue and digital weighing systems?

Analogue weighing systems use analogue signals to transmit data, while digital weighing systems use digital signals. Digital systems are generally more accurate and reliable, and can provide more advanced features and functionality.

What is the difference between a single point and multi-point weighing system?

A single point weighing system uses a single load cell to measure the weight of an object, while a multi-point weighing system uses multiple load cells. Multi-point systems are typically more accurate and reliable, but also more complex and expensive.

What are the different application of weighing controller?

"● Tank / silo weighing ● Process weighing ● Peak weighing ● Batch weighing ● Bagging system, Check weighing ● Loss-in weight ● Weigh feeder ● Continuous weighing and Dosing ● Liquid Filling ● Weighing and Blending"

What are the different Models of Weighing Controller?

M02, GMT-P1, GMT-X1, GM7702, GM8804C-2, M04, GM9907, GM8804C-A6, GM8804C-6, GM8804C-7 etc.

How can we select the Weighing Controller model?

Model selection depends on the application, Process flow, Number of Input and output required, Communication protocol requirement, Speed and accuracy requirement.

What types of mounting is available in controller?

Panel mount , DIN Rail Mount , Field Mount

Is there any Touch Screen Model available?

Yes we have 9907 Series weighing controller having touch screen interface.

Is there any TFT display Model available?

Yes we have M04 Series Weighing controller having TFT display.

Is there any VFD Display Model available?

Yes we have a GM8804C series having VFD display.

Is there any model who can control dual hopper application?

Yes we have GM8804CD, M04 D and GM9907LD model who can control dual hopper application.
