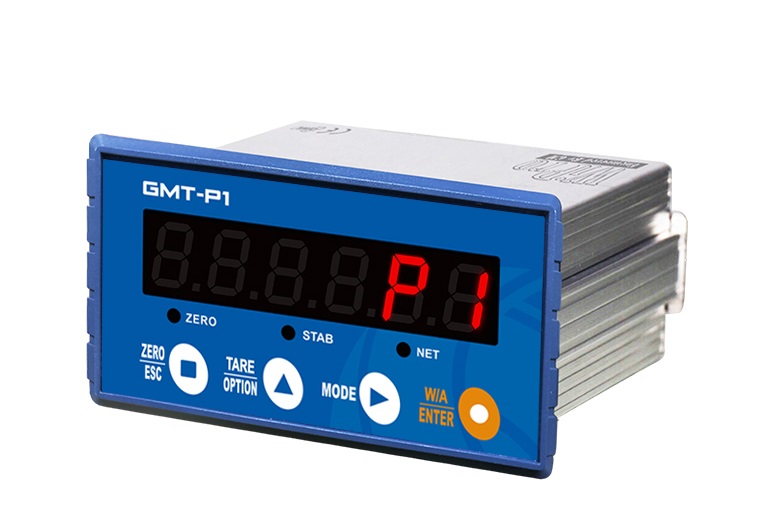

GMT-P1
The GMT-P1 is a panel-mounted weighing transmitter that offers exceptional reliability, advanced filtering, and a tested ability to perform stably under the interference of harsh industrial environments. It is customized for dynamic weighing systems with the highest demands for reliability, response speed, and accuracy.
Related products
- Selectable RS232/485 interface by switch
- Simple design to facilitate connection to a PLC
- Operating functions by 4 set buttons
- I/O points (1 input, 2 outputs) as standard
- Optional analog output (0-5V initial)
- Powers up to 8units of load cells with 6 wires connection, provide long distance compensation
- Selectable A/D Converter 30/60/120/240/480/960times/sec
- 1,000,000 weight resolution ability, with second generation Vibration Cancellation Filter
- Support theoretical calibration with loadcell sensitivity
- Compact, lightweight body makes it ideal for mounting into a control panel
- OIML approved
- Easy to use
- Compact design
- Flexible operation with stable performance
| OIML R76 | e=1 µV/d, 6000e | |
| A/D conversion | 124-bit Delta-Sigma | |
| Zero adjustment range | 0 to 12mV (Load cell 3mV/V) | |
| Nonlinearity | 0.01% F.S | |
| Maximum input voltage | 0 to 15mV (Load cell 3mV/V) | |
| Minimum sensitivity | 0.01 μV/d | |
| Input impedance | 10ΜΩ | |
| Sampling rate | 30/60/120/240/480/960 times/sec. | |
| Display resolution | 1 / 999,999 | |
| Load cell excitation | DC5V, 200mA(Max.), Up to 8 load cells(35002) can be connected | |
| DIGITAL UNIT | ||
| Display elements | 7-segment 6-digit red LED | |
| Data display range | 0 to 999,999d | |
| Status indicators | ZERO, STAB, NET | |
| BASIC SPECIFICATIONS | ||
| Power source voltage | DC24V + 5% | |
| Power consumption | Approx. 10W | |
| Temperature and humidity | -10°C to 40°C / 90% R.H or less(Condensation must be avoided) | |

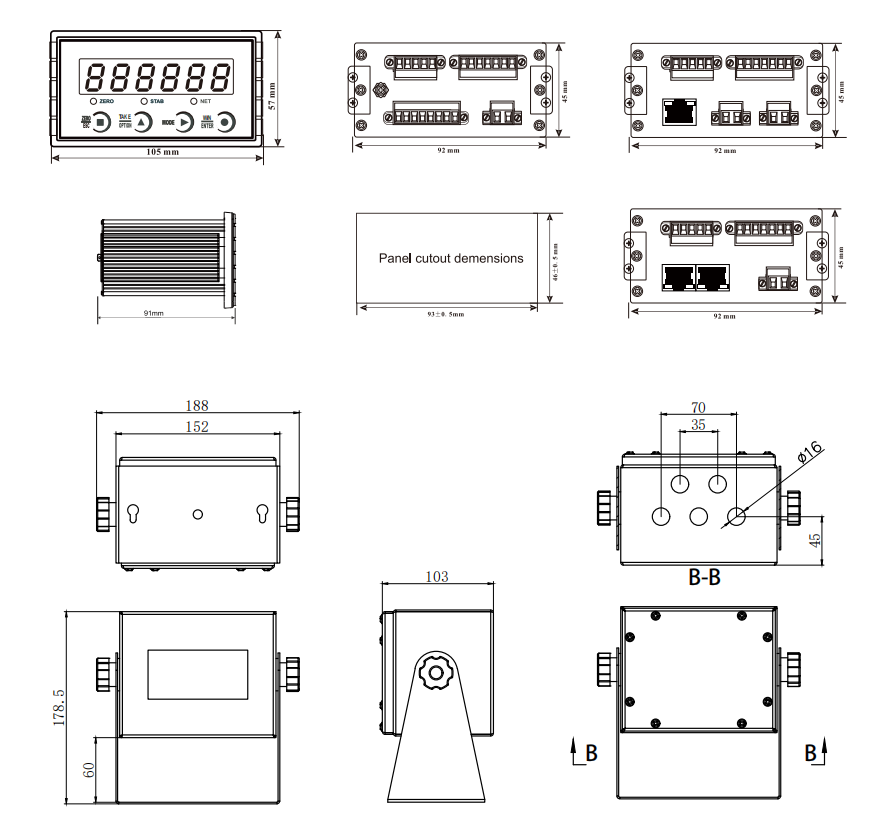

| Dimensions | 110 x 89 x 60 mm (LxWxH) | |
| Weight | Approx.350g | |
| Panel cut dimensions | 93 x 46mm | |
| Dust/water protection | The IP 65 display when mounted into a panel | |
| Enclosure | ABS front panel, aluminum case. | |
OPTIONS |
||
| Serial interface | Standard RS-232/RS485 interface | |
| Analog output | 0-5V, 0-10V, 4-20mA, 0-24mA, 0-20mA, User Define | |
| Ethernet | Modbus TCP |
