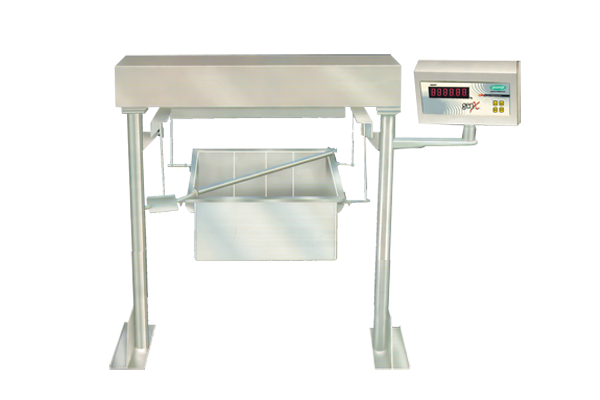

Milk Weigher (Bowl Scale)

Bowl Scale incorporates post display type design and provides accurate weight in a big LED display panel, which is easy to read. It comprises of conveniently located feather touch controls that simplify your operation. It is versatile, can be easily fixed wherever needed, and interfaced to a computer to best suit your working environment.

Inquire Now

Key Features

  • Wash Down Construction

The scale is fully waterproof to facilitate easy cleaning. It is entirely protected from moisture and humidity; forbidding any threat to its consistent, accurate performance.

  • Tare

Should have Tare up to 50% of weighing scale capacity.

  • RS232 Interface

The weighing scale can be connected to PC through RS232 port. Baud rate is selectable between the range of 2400, 4800, 9600, and 19200.

  • Kg to Liter Conversion

The scale measurements can be converted from Kilogram to Liter SI units.

Product Highlights

  • Easy to cleaning
  • Fully waterproof
  • Protected from moisture and humidity
  • Accurate

Technical Specifications

Technical Specification
Processor 8-bits Microcontroller
Display 6 digits, 0.5 Inch or 0.8 Inch, Red Color 7-segment display
Weight Sensor Load Cell
Keys 5 Membrane Keys
External Interface / Connectivity One RS232 interface
Environment Operative temperature: 0 to 50 Degree Celsius (32 to 122 F)

Relative humidity: 5% to 85% RH non condensing

Power Supply 180-260 Volts, 50 HZ
Battery Backup 6V 4.5Ah battery, Approx. 24 hours battery backup

Models

Sr No. Capacity (Kg) Accuracy (g) Overall Size (mm) Frame material Load Cell
1 600 100 1686 x 1200 x 1450 MS IP-67 Alloy Steel
2 600 100 1686 x 1200 x 1450 SS #304 IP-67 Alloy Steel
