Packeasy 10-50 Kg

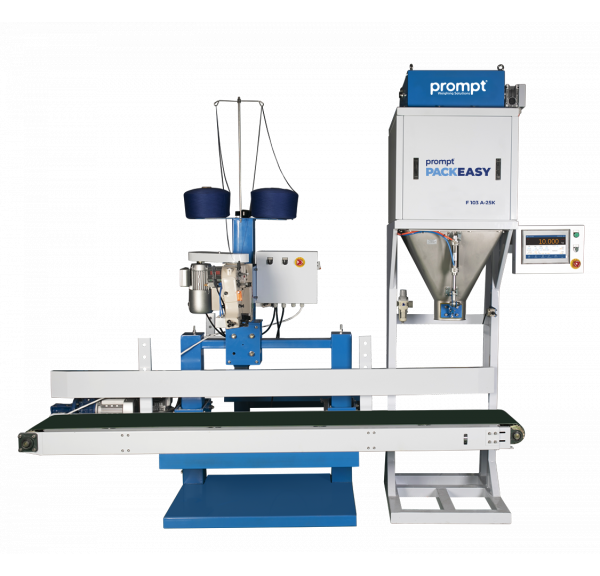

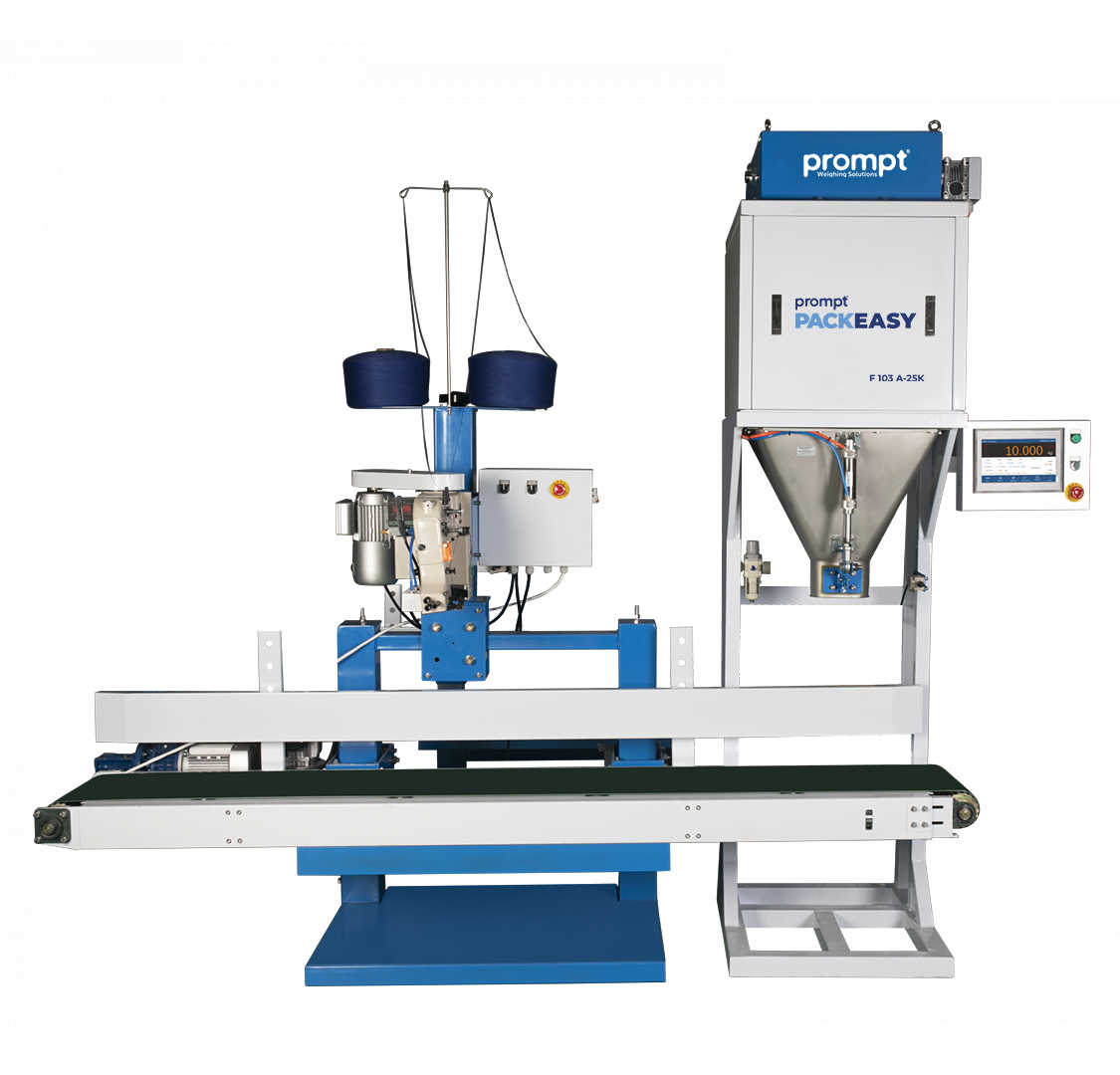

Introducing the groundbreaking Prompt Automatic Bag Filling System (10-50 kg), a technological marvel designed to redefine your industrial bagging process. Designed with precision and innovation, this latest bag-filling machine is engineered to deliver higher efficiency and accuracy for various manufacturing and packaging operations.

This versatile solution is designed to accommodate weights ranging from 10 to 50 kg and caters to a wide array of industries and packaging requirements. Our Automatic Bag Filling System can handle all type of granular materials. It seamlessly adapts to your unique needs, ensuring a streamlined and reliable packaging process.

Equipped with unique technology and a user-friendly interface, operators can monitor and control the filling process with ease. With its ability to optimise production while maintaining precision.

Category:
Inquire Now
  • Weight capacity of 10 to 50 kg
  • Speed-focused bagging process, boosting production efficiency while maintaining accuracy
  • Dual serial ports RS232/RS485 and Modbus TCP/IP enable seamless connectivity
  • Industry-grade SS304 stainless steel components for durability and hygiene compliance
  • Customised software by Prompt’s R&D division for optimised packaging processes
  • 10-inch touch screen displays real-time data, including status, weight, recipe details, and feeding speed
  • Swift installation due to the standard flange interface
  • Precision ensured through advanced precision weighing technology
  • Versatile weight range complying with different product sizes
  • Easy-to-use interface for easy control and monitoring of bagging operations
  • Quick installation and mountable machine beneath a hopper
  • Speed of up to 14 bags per minute
  • Achieves an accuracy of ±20 g per bag ranging from 10 to 50 kg
Model PAB-05K, PAB-25K, PAB-50K, PAB-100K
Hardware 10-inch Touch Screen, Actuator, F301 Mainboard, 4G Signal Transmitter (Optional)
Structure Weigher Scale, Measuring Hopper, Electric Cabinet, Discharge Hopper
Filling Mode Stepper Motor(3 stage feeding, cores, moderate, fine)
Controller Touch Screen Bagging Controller
Communication USB, RS232/485, MOD Bus TCP/IP, Data storage capacity 7,00,000
Value for min.division 1,2,5,10,20,50
Accuracy ±5g, ±10, ±20 g , ±50g
Speed ≤900 Bags per Hour
Operating Temperature 0°C~40°C
Operating Humidity 90% R.H Condensation is not allowed
Power 3 phase, AC 110 ~ 260V.50/60Hz. Approximate 200VA
Material Food contacting material: SS304 stainless steel, others: MS
Air Supply 6 bar
Bag Type Open mouth
Optional Accessories Double thread, Auto thread cutter/Heat Sealing

PackEasy

Brochure

Download
FAQ

FAQ

Clearing Up Your Queries and Providing Informed Solutions
What is the Prompt Automatic Bag Filling System?

The Prompt Automatic Bag Filling System is a high-speed bag filling machine designed for industrial applications that deal with granular products like rice, pulses, animal feed, maize, soybeans, seeds, plastic granules, etc for filling and Stiching/Sealing Bag.

What are the different models available in the Prompt Automatic Bag Filling System?

The different models available in the Prompt Automatic Bag Filling System are PAB-05K, PAB-25K, PAB-50K, and PAB-100K.

What is the accuracy range of the Prompt Automatic Bag Filling System?

The accuracy range of the Prompt Automatic Bag Filling System is ±5gm up to 5kg, ±10gm up to 25kg, ±20 g up to 50 kg and ±50 g up to 100 kg.

What is the speed range of the Prompt Automatic Bag Filling System?

The speed range of the Prompt Automatic Bag Filling System is up to 14 bags per minute for 25kg bagging.

What is the filling mode of the Prompt Automatic Bag Filling System?

The filling mode of the Prompt Automatic Bag Filling System is with a Servo motor with three stages of feeding, course, moderate, and fine.

What is the communication interface available with the Prompt Automatic Bag Filling System?

The communication interfaces available with the Prompt Automatic Bag Filling System are USB, RS232/485, and Modbus TCP/IP.

What is the data storage capacity of the Prompt Automatic Bag Filling System?

The data storage capacity of the Prompt Automatic Bag Filling System is 700,000 bags data.

What is the value for the minimum division in the Prompt Automatic Bag Filling System?

The value for the minimum division in the Prompt Automatic Bag Filling System is 1, 2, 5, 10, 20, and 50.

What is the material used in the construction of the Prompt Automatic Bag Filling System?

The food contacting material used in the construction of the Prompt Automatic Bag Filling System is SS304 stainless steel, and the others are MS.

What is the operating temperature range of the Prompt Automatic Bag Filling System?

The operating temperature range of the Prompt Automatic Bag Filling System is 0°C~40°C.

What is the operating humidity range of the Prompt Automatic Bag Filling System?

The operating humidity range of the Prompt Automatic Bag Filling System is 90% R.H, and condensation is not allowed.

What is the power requirement of the Prompt Automatic Bag Filling System?

The power requirement of the Prompt Automatic Bag Filling System is 3 phase, AC 110 ~ 260V.50/60Hz. Approximate 200VA.

What are the optional accessories available with the Prompt Automatic Bag Filling System?

The optional accessories available with the Prompt Automatic Bag Filling System are double thread, auto thread cutter Stitching machine, and heat sealing Machine.

What is the structure of the Prompt Automatic Bag Filling System?

The structure of the Prompt Automatic Bag Filling System includes a weighing hopper, Storage hopper, electric cabinet, and discharge hopper, Clamper, Conveyor, Stitching machine / Heat-sealing machine.

What is the controller used in the Prompt Automatic Bag Filling System?

The controller used in the Prompt Automatic Bag Filling System is a touch screen bagging controller.

What is the Electronics hardware used in the Prompt Automatic Bag Filling System?

The hardware used in the Prompt Automatic Bag Filling System includes a 10-inch touch screen, actuator, F301 mainboard, and 4G signal transmitter (optional), Stepper Motor, Pneumatics etc.

What are the benefits of using the Prompt Automatic Bag Filling System?

The benefits of using the Prompt Automatic Bag Filling System include high-speed and accuracy with auto feedback control, easy and fast installation, customization for different materials, user-friendly touch screen, and efficient.

What are the advantages of using Prompt Automatic Bag Filling System?

Increased efficiency, consistency, and reduced labor costs.

For which products can this be used?

Granular products

How does Prompt Automatic Bag Filling System handle bag sealing?

Stitching and heat sealing
