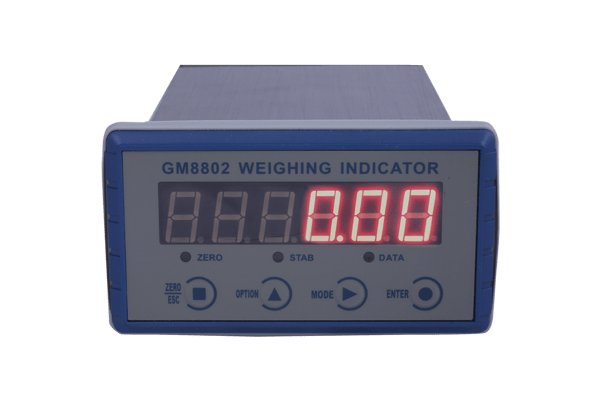

GM8802-E
This panel-mount transmitter offers good reliability and exclusive filtering capability. Digital weighing transmitter can withstand the extreme industrial environments. It is also easy to operate and has the least maintenance requirements. It offers excellent speed, accuracy and reliability.
Related products
- CE Compliance
- Powerful 32 bit ARM technology CPU makes it exceptional precise and responsive
- Patent pending two-layer advanced digital filtering algorithm
- 24 bit Delta-Sigma A/D conversion with 8 million counts internal resolution
- IP65 front panel protection
- Modular design for ease of maintenance
- Front panel mounting
- Advanced switched-mode power supply 90-260V AC / 18-36V DC
- Smart adjustable analogue output
- All output ports optically isolated
- IP65 Protected
- High Accuracy
- Anti Vibration
| INDICATOR POWER | ||
| Power Supply | DC 24V ± 5% | |
| Power Consume | About 10w | |
| A/D CONVERTER | ||
| Type | 24-bit Delta-Sigma | |
| Analogue input range | 0mV to 15mV | |
| Linearity | <0.001%FS | |
| Gain Drifting | 10PPM/℃ | |
| Minimum Sensitivity | 0.1 µ V/d | |
| Conversion Rate | 120/s | |
| Display Accuracy | 1/30,000 | |
| CALIBRATION & WEIGHING FUNCTIONS | ||
| Calibration | By test weight or by electronic calibration | |
| Digital Filter | Two Layer FIR filter with 9 selectable levels | |
| Weighing Functions | zero, zero trackings, auto-zero at power | |
| ENVIRONMENTAL | ||
| Operating Temperature | -10℃ to 40℃ | |
| Storage Temperature | -25℃ to 70℃ | |
| Relative Humidity | 90% R.H without dew | |
| IP Level | IP65 | |
| LOAD CELLS | ||
| Excitation | 5V | |
| Load Cells | Drives 8pcs load cells 350Ω | |
| MECHANICAL DATA | ||
| Dimensions & Weight | 105×151×57 mm (L×W×H) weight approx.550g | |
| Standard Mounting | Panel mount | |
| Certification | CE | |
| Enclosure | ABS front panel, cast aluminium body | |
| INSTRUMENTS WITH ANALOGUE OUTPUT | ||
| Type | Isolated 16-bit D/A converter | |
| Accuracy | 0.04% | |
| Voltage Output | 0-5V / 0-10V / -5-5V / -10-10V | |
| Current Output | 4-20mA / 0-20mA / 0-24mA |
