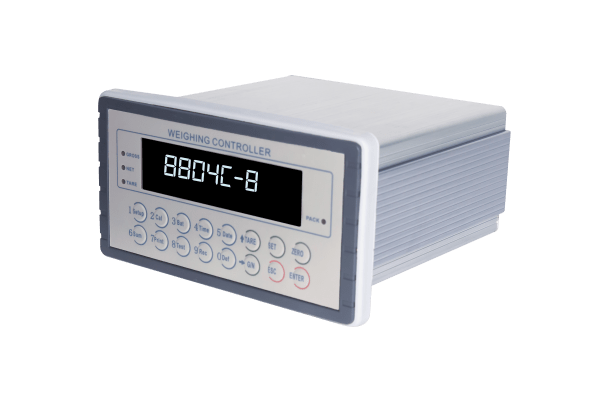

GM8804C-8
GM8804C-8 is a panel-mount transmitter featuring a robust design that suits the extreme industrial environments. Highly adaptable in market, this weighing transmitter will take care of all your basic weighing needs. It comes with several communication ports and can easily get connected with PLC/PC.
Related products
- CE compliant User-programmable 20 I/O ports (8 inputs and 12 outputs)
- Full digital calibration without weights
- Two weighing modes: Gross mode and Net mode
- Automatic tare subtracting and tare clearing
- Automatic accumulating
- Advanced digital filtering algorithm
- Communication interfaces: serial interface or an analog output interface or PROFIBUS-DP interface (optional)
- CE Compliant
- Anti-vibration
- IP65 Protected
- Advance digital filtering
- High Accuracy
| INDICATOR POWER | ||
| Power Supply | 90V～260V AC 50Hz(or 60Hz)±2% | |
| Power Consume | About 15W | |
| A/D CONVERTER | ||
| Type | 24-bit Delta-Sigma | |
| Analogue input range | 0mV to 30mV | |
| Linearity | <0.01%FS | |
| Gain Drifting | 10PPM/℃ | |
| Minimum Sensitivity | 0.5 µ V/d | |
| Conversion Rate | 120/s | |
| Display Accuracy | 1/100,000 | |
| CALIBRATION & WEIGHING FUNCTIONS | ||
| Calibration | By test weight or by electronic calibration | |
| Digital Filter | FIR filter with 9 selectable levels | |
| Weighing Functions | zero, zero tracking, auto-zero at power, net weighing, gross weighing, auto tare, accumulation, 3 set points(including near-zero point) | |
| DISPLAY & KEYBOARD (Except GM8802C-E) | ||
| Main Display | 6 digits, 7 segments, VFD | |
| Sub Display | 3 digits, 7 segments, VFD | |
| Keyboard | 6 push-buttons | |
| Status Indicators | (18 indicator in VFD) ZERO, STAB, RUN, SUM, OVER, UNDER, SP1, SP2, SP3, DISC, NZ, FILL, HILIM, HI, GO, LO, LOLIM, HOLD | |
| LED Status | Gross, Net, Tare, Pack | |
| ENVIRONMENTAL | ||
| Operating Temperature | -10℃ to 40℃ | |
| Storage Temperature | -25℃ to 70℃ | |
| Relative Humidity | 90% R.H without dew | |
| IP Level | Front Panel IP65 | |
| LOAD CELLS | ||
| Excitation | 12V | |
| Load Cells | Drives 8pcs Load Cells 350Ω | |
| MECHANICAL DATA | ||
| Dimensions & Weight | 165×181×98 mm (L×W×H) | |
| Standard Mounting | Panel Mount | |
| Certification | CE | |
| Enclosure | ABS front panel, cast aluminium body. | |
| DIGITAL INPUT | ||
| Output Number | 8 | |
| Output Meaning | (10 Self-defined meanings) ZERO, G/N, TARE, MODE, ESC, ENTER, ACCUMULATE, SET TARE, CLEAR TARE, PRINT | |
| DIGITAL OUTPUT | ||
| Output Number | 12 | |
| Output Meaning | (8 Self-defined meanings) HILIM, MELIM, LOLIM, NZ, GROSS, NET, STABLE, OFL | |
| OPTIONAL BOARD | ||
| A: UART&DP | UART: RS232/RS485, DP: Profibus | |
| B: DAC&DP | DAC: 0-5V, 1-5V, 4-20mA, 0-20mA, DP: Profibus | |
| C: UART&Print | UART: RS232/RS485, Print: RS232 | |
| D: UART&DAC | UART: RS232/RS485, DAC: Isolated 16-bit D/A , 0-5V, 1-5V, 4-20mA, 0-20mA, | |
| UART RS232/RS485 | ||
| BUS | Standard Modbus RTU Protocol | |
| READ | Read and Response mode (General Measure Protocol) | |
| CONT | Sending Continuous (General Measure Protocol) |
