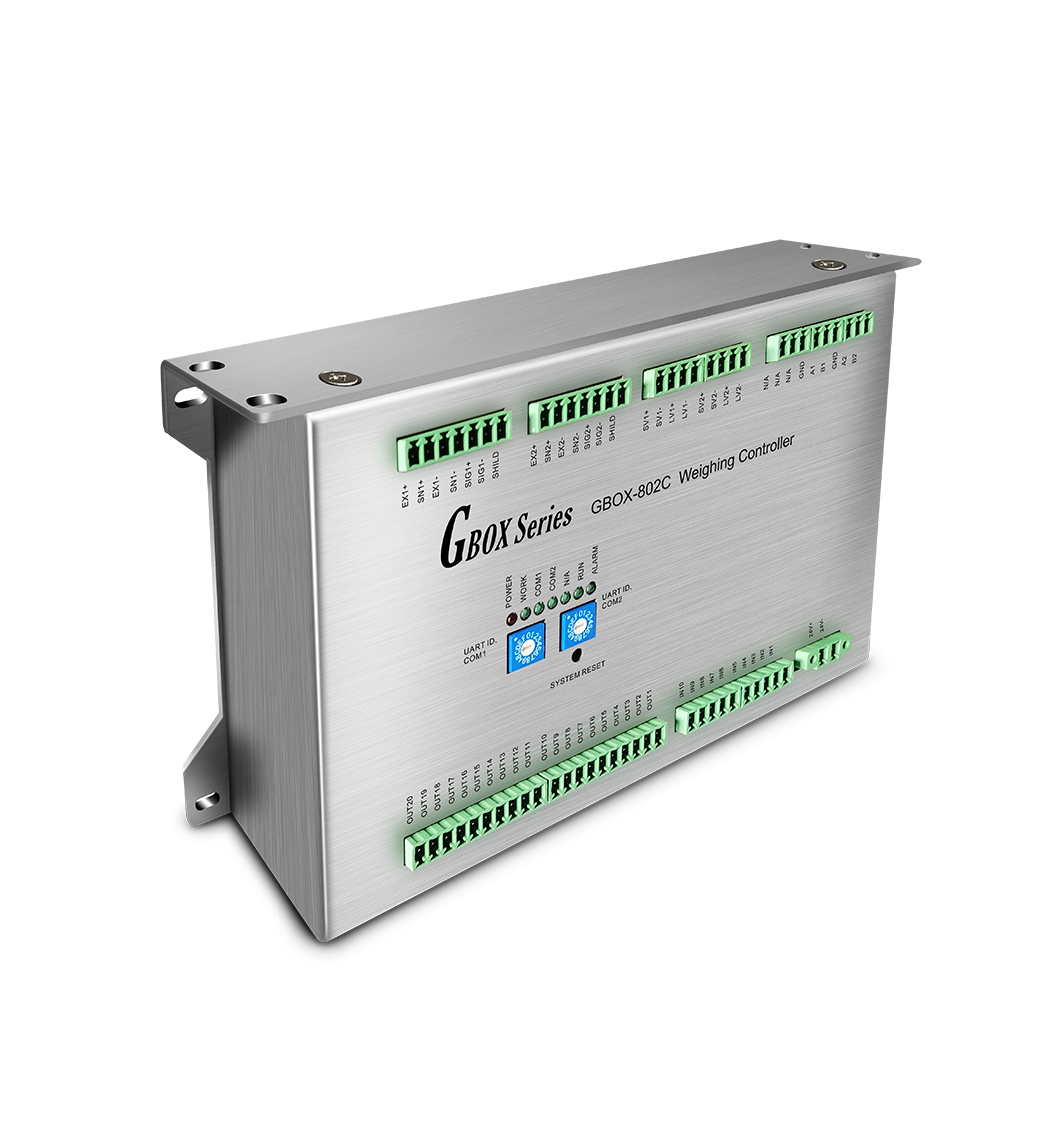

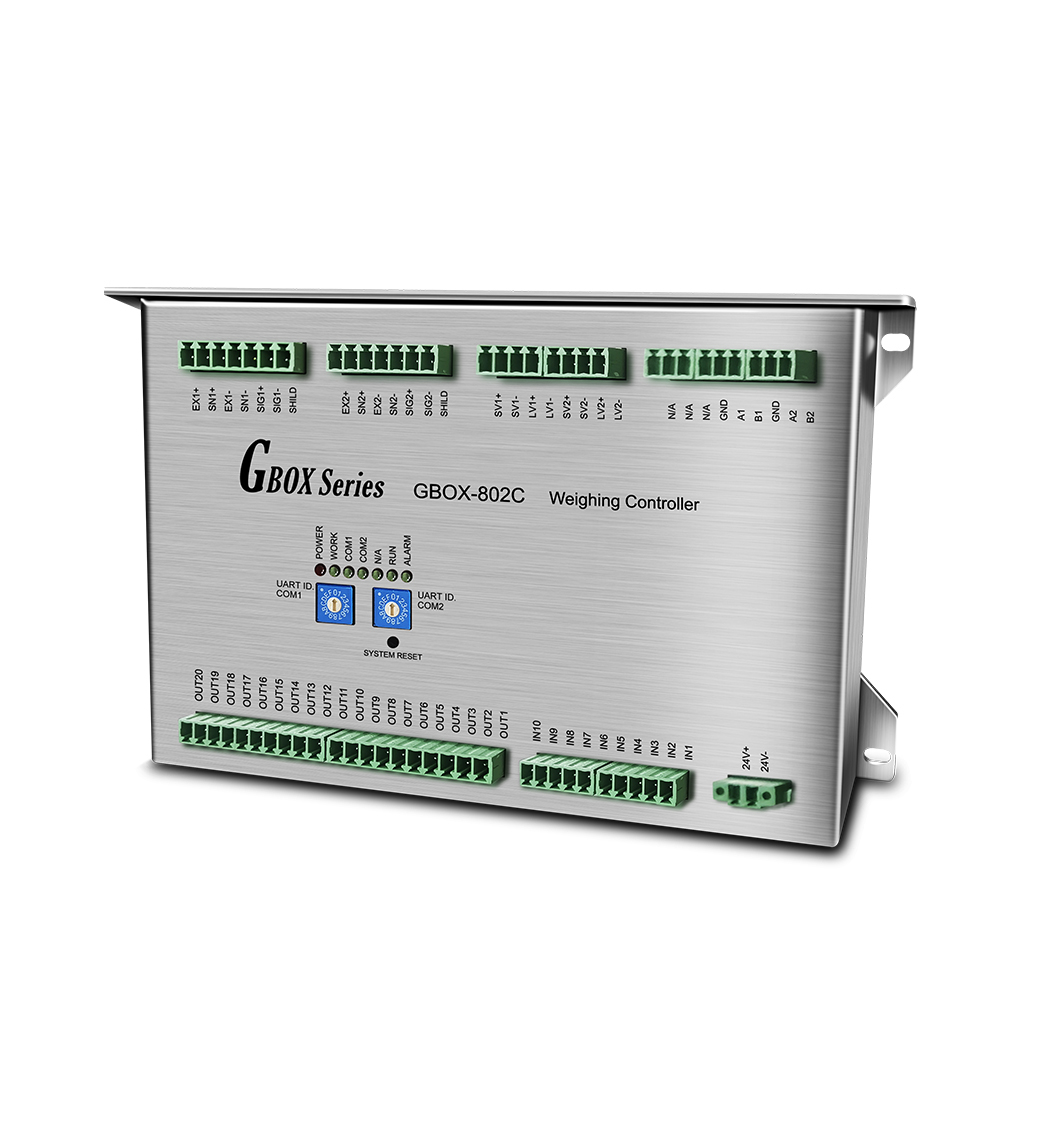

Linear Feeder Controller GBOX-802CD
Prompt Linear Feeder Controller GBOX-802CD is designed as a weighing module for linear feeder packing systems. This feeder controller fits well with systems with vibrators. The new algorithm used in its interface makes weighing control accurate and faster. This machine comes with multiple communication ports for easy connectivity and control, and is ideal for weighing granules and powdery substances (sizes ranging between 10g and 5000g) like salt, sugar, rice, seeds, sesame, spice, coffee, milk powder, and washing powder, etc.
Related products
Product features:
- Dual interlocked packing scales with up to 3 controllers for 6 packing scales
- Two vibration feeding control speeds are available
- Zero function can be automated
- Parameters correction function and process control can be automated.
- Statistics function with data accumulation and storage
Hardware features:
- RS485 port communication
- 10 Input and 20 output I/O communication system
- 4 analog interfaces
- 2 load cell interfaces
| Model | GBOX 802 CD | |
| Power | 24V DC ± 5% | |
| Power consumption | 3W approximately | |
| Humidity | 90% RH with no condensation | |
| Working temperature | 0 to 40°C | |
| Calibration standard | Class III 6000e, 1 uV/d | |
| Size | 213 X 137 x 38.5 mm | |
| A/D Conversion | 24-Bit Sigma-Delta | |
| Non-linearity | 0.01% F.S | |
| Gain Drift | 10 PPM/°C | |
| Sensitivity | 0.02 uV/d | |
| Input range | 0.02 to 11 mV (Load Cell: 2Mv/V) | |
| Load Cell Power | 5V DC, 125mA (maximum) | |
| Input Impedance | 10 MΩ | |
| Zero adjustment range | 0.02 to 8 mV (load cell: 2mV/V) | |
| Load cell interface | 6-wire load cell scale. Each interface can connect 8 load cells with 350Ω | |
| Communication interface | 2 RS485 ports and 1 CAN interface (optional) | |
| I/O Interface | 10 input and 20 output transistor interfaces (OUT 16-19 are PWM controllers) | |
| Analog interface | 4 vibrator voltage output with range 0 to 5000 mV |
FAQ
Clearing Up Your Queries and Providing Informed Solutions
What is a weighing controller?
A weighing controller is a device that is used to control and manage the weighing process. It is responsible for receiving and processing signals from the load cells or sensors and providing output signals to other devices.
What is a weighing indicator?
A weighing indicator is a device that displays the weight of the load on the weighing scale. It is typically used in conjunction with load cells or sensors to accurately measure the weight of objects.
What is a weighing transmitter?
A weighing transmitter is a device that converts the signal from load cells or sensors into a standardized signal that can be used by other devices, such as a computer or a PLC.
What are load cells?
Load cells are transducers that are used to measure weight. They convert the force exerted by a load into an electrical signal that can be measured and analyzed.
What is calibration?
Calibration is the process of adjusting a weighing system to ensure that it provides accurate and reliable measurements. It involves comparing the system's readings to a known standard and making adjustments as necessary.
Why is calibration important?
Calibration is important to ensure that the weighing system provides accurate and reliable measurements. A poorly calibrated system can lead to incorrect measurements, which can have serious consequences in industries such as healthcare, pharmaceuticals, and food production.
What is zero drift?
Zero drift is a phenomenon in which the zero point of a weighing system shifts over time. This can be caused by changes in temperature, mechanical wear, or other factors.
What is the difference between analogue and digital weighing systems?
Analogue weighing systems use analogue signals to transmit data, while digital weighing systems use digital signals. Digital systems are generally more accurate and reliable, and can provide more advanced features and functionality.
What is the difference between a single point and multi-point weighing system?
A single point weighing system uses a single load cell to measure the weight of an object, while a multi-point weighing system uses multiple load cells. Multi-point systems are typically more accurate and reliable, but also more complex and expensive.
What are the different application of weighing controller?
Tank / silo weighing Process weighing ● Peak weighing ● Batch weighing ● Bagging system, Check weighing ● Loss-in weight ● Weigh feeder ● Continuous weighing and Dosing ● Liquid Filling ● Weighing and Blending
What are the different Models of Weighing Controller?
M02, GMT-P1, GMT-X1, GM7702, GM8804C-2, M04, GM9907, GM8804C-A6, GM8804C-6, GM8804C-7 etc.
How can we select the Weighing Controller model?
Model selection depends on the application, Process flow, Number of Input and output required, Communication protocol requirement, Speed and accuracy requirement.
What types of mounting is available in controller?
Panel mount , DIN Rail Mount , Field Mount
Is there any Touch Screen Model available?

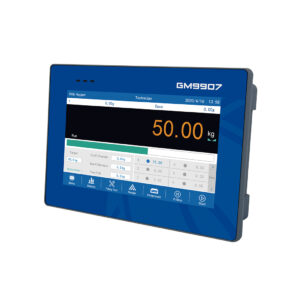

Yes we have 9907 Series weighing controller having touch screen interface.
Is there any TFT display Model available?
Yes we have M04 Series Weighing controller having TFT display.
Is there any VFD Display Model available?
Yes we have a GM8804C series having VFD display.
Is there any model who can control dual hopper application?
Yes we have GM8804CD, M04 D and GM9907LD model who can control dual hopper application.
